Beader

TECHNICAL DATA

T D
E A
C T
H A
N …
I …
C …
A …
L …

MODEL	CHUCKS	CAN (mm)	CAN HEIGHT (mm)	CAPACITY (cpm)	THICKNESS (mm)	POWER (kW)	WEIGHT (kg)	DIMENSIONS (mm)	STANDARD ELECTRIC POWER
N 515	16	52 – 105	38 – 210	250 – 1200	0,13 – 0,25	13	4000	2320 – 1150 – 1970	400V (50/60Hz) ± 10%
N 533	8	99 – 155	90 – 260	100 – 3500	0,13 – 0,30	13	4000	2320 – 1150 – 1970	400V (50/60Hz) ± 10%

MODEL	CHUCKS	CAN (mm)	CAN HEIGHT (mm)	CAPACITY (cpm)	THICKNESS (mm)	POWER (kW)	WEIGHT (kg)	DIMENSIONS (mm)	STANDARD ELECTRIC POWER
N 515	16	52 – 105	38 – 210	250 – 1200	0,13 – 0,25	13	4000	2320 – 1150 – 1970	400V (50/60Hz) ± 10%
N 533	8	99 – 155	90 – 260	100 – 350	0,13 – 0,30	13	4000	2320 – 1150 – 1970	400V (50/60Hz) ± 10%

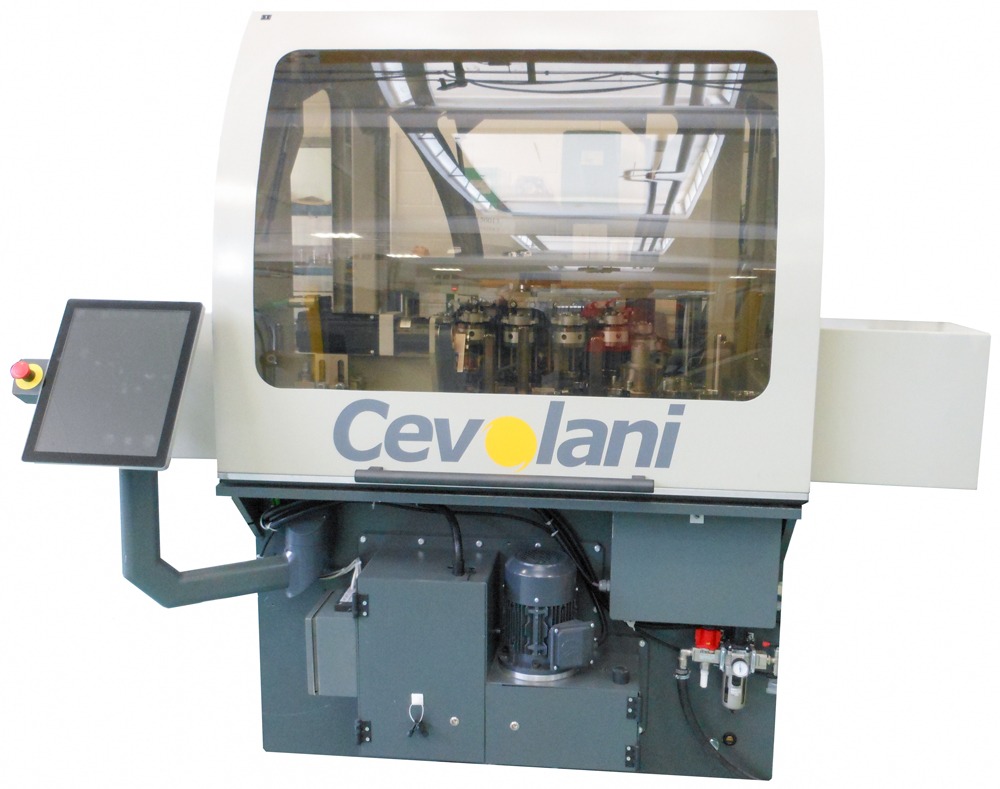

Highly efficient automatic machine for can beading.
Extremely rigid beading operation thanks to the can transfer system inside the machine base.
4 – 8 or 16 beading stations for extremely gradual operations.
Automatic machine setting in reduced stand-by speeds, in case of line stops.

Machine is controlled by a PLC and operator interface via a display panel.
Centralized lubrication with oil recovery system.
New Cevolani machines are built with the traditional standards of durability and solidity. This allows used machines to keep value in time.
Standard components are used. The common Wear and tear parts are available in our warehouse.

UPON REQUEST

Modem interface available for on-line service, trouble- shooting and software update.

With low production speeds machine can be equipped with two different size toolings at the same time.

Automatized height change.

Oil circuit with two-way filter.
