Compound-Liner-and-Oven

TECHNICAL DATA

T D
E A
C T
H A
N …
I …
C …
A …
L …

MODEL COMPOUND LINER	MIN. LID (mm)	MAX. LID (mm)	LIDS PER MINUTE	POWER (kW)	DIMENSIONS (mm)
Single MT556	40	180	400	3	1100 x 850 x 800
Double MTD555	40	109	800	4	1100 x 850 x 800
MODEL OVEN	MIN. LID (mm)	MAX. LID (mm)	LIDS PER MINUTE	NET WEIGHT (Kg)	DIMENSIONS (mm)
Single FVSTC543	40	180	400	1500	1100 x 850 x 800
Double FVDTC542	40	109	800	2000	2500 x 3350 x 1500

MODEL COMPOUND LINER	MIN. LID (mm)	MAX. LID (mm)	LIDS PER MINUTE	POWER (kW)	DIMENSIONS (mm)
Single MT556	40	180	400	3	1100 x 850 x 800
Double MTD555	40	109	800	4	1100 x 850 x 800
MODEL OVEN	MIN. LID (mm)	MAX. LID (mm)	LIDS PER MINUTE	NET WEIGHT (Kg)	DIMENSIONS (mm)
Single FVSTC543	40	180	400	1500	1100 x 850 x 800
Double FVDTC542	40	109	800	2000	2500 x 3350 x 1500

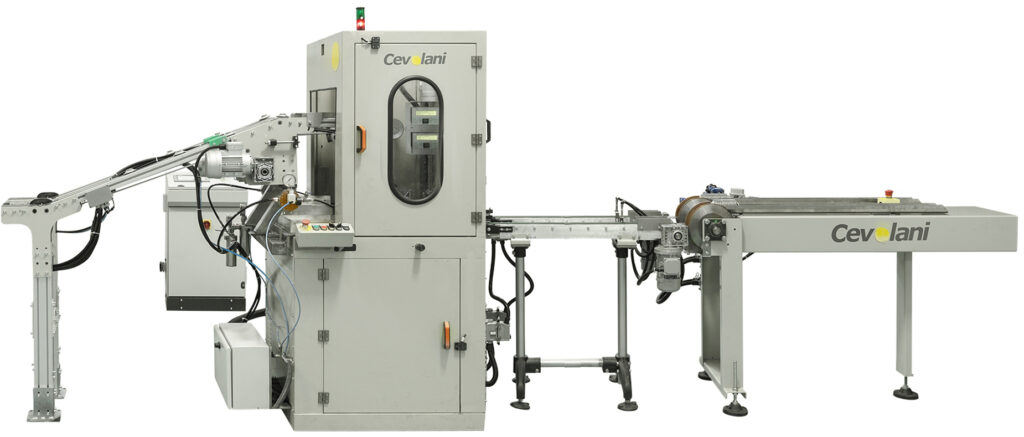

Production unit for application and drying of water based compounds. This user-friendly system guarantees high production with excellent quality in a limited workspace.
Machine controlled by means of PLC.

Special parts are used to handle lids through the machine which prevent damage.
Quick and simple tooling change. Very few parts need to be changed or set.

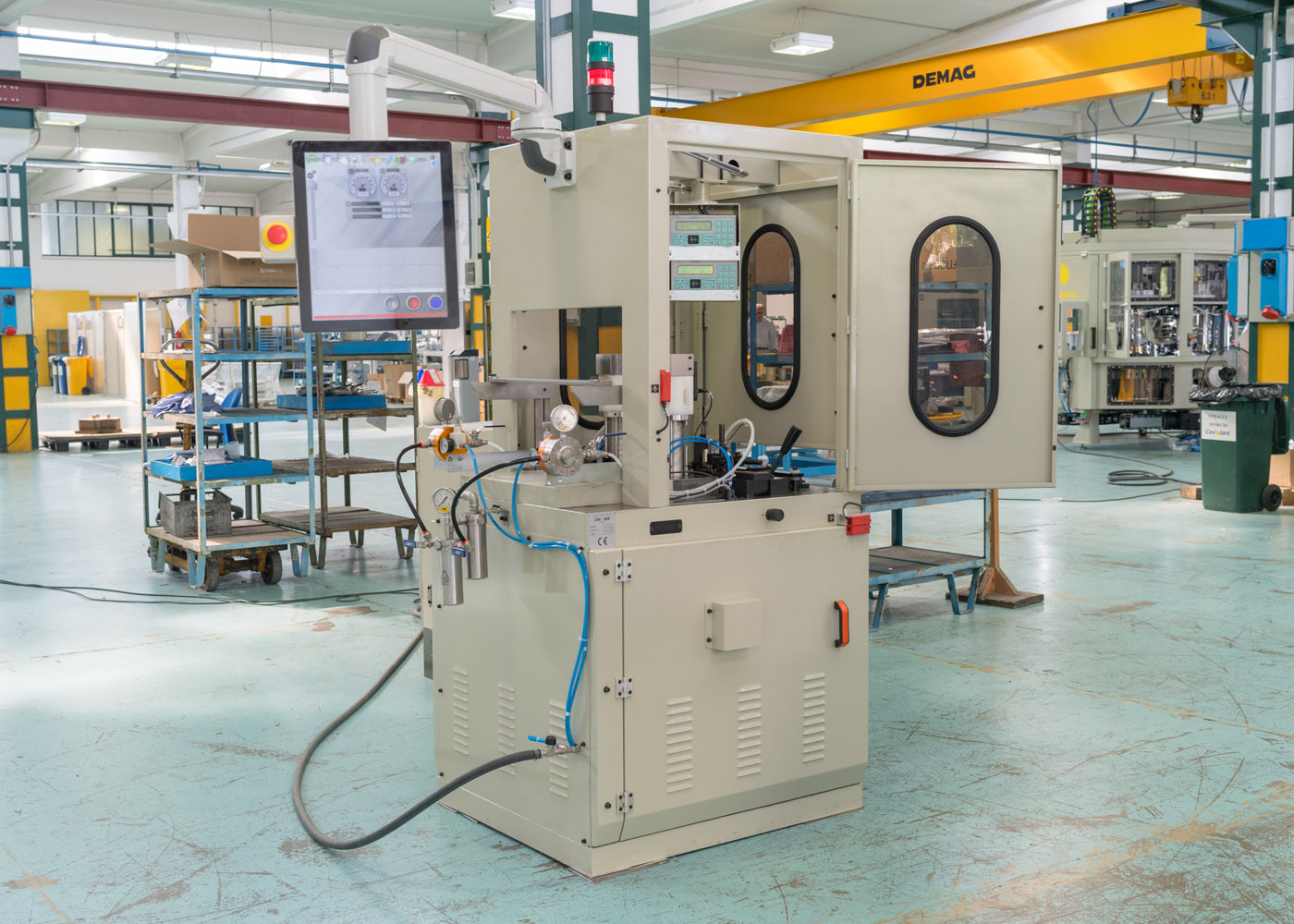

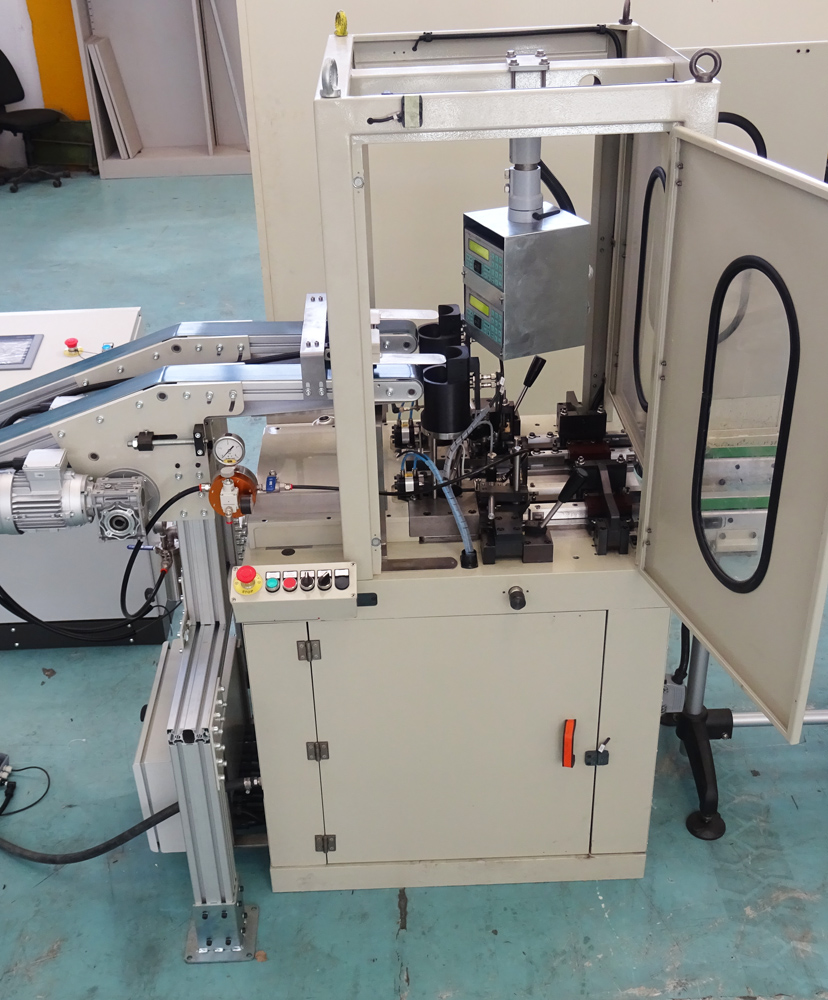

COMPOUND LINER

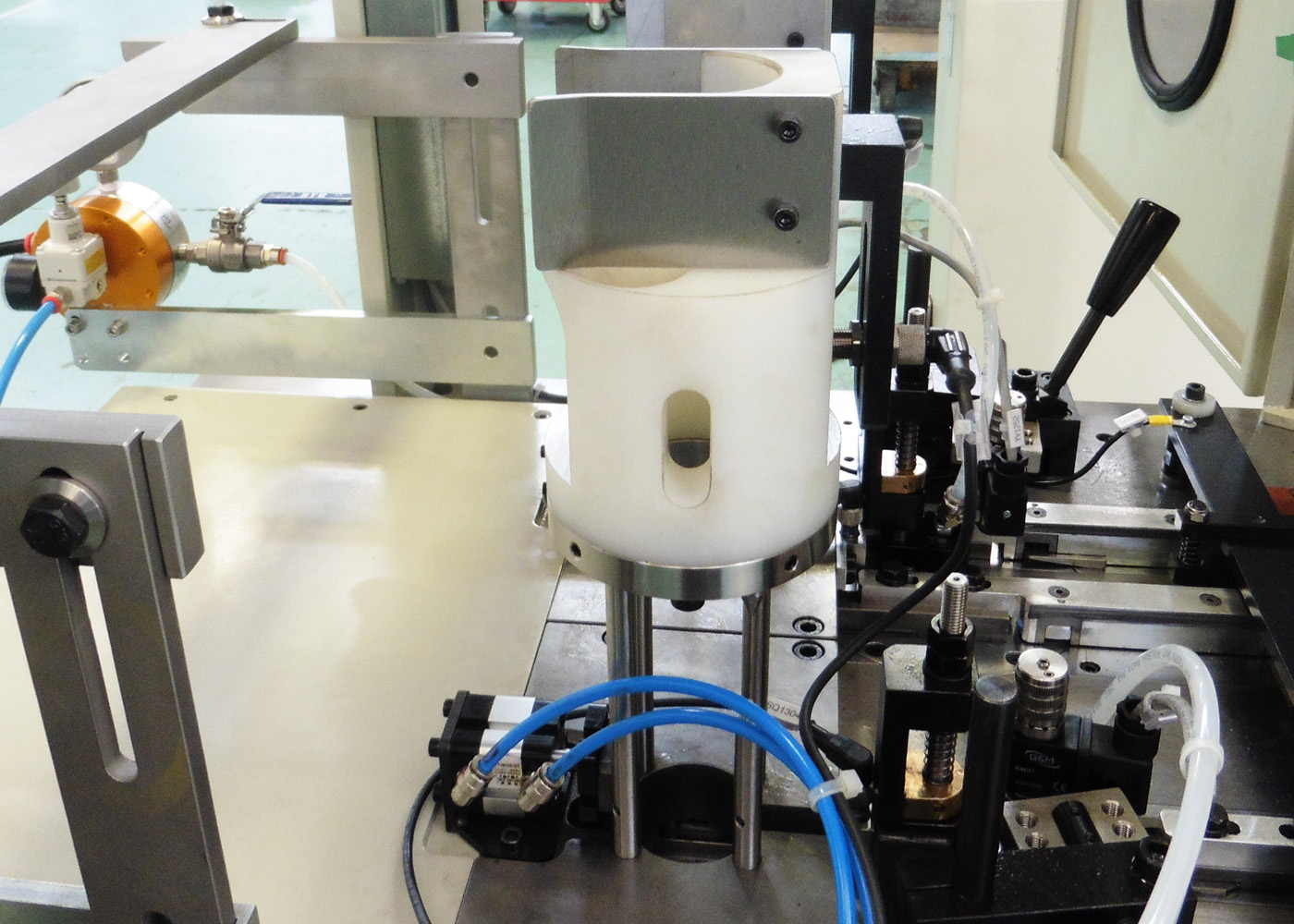

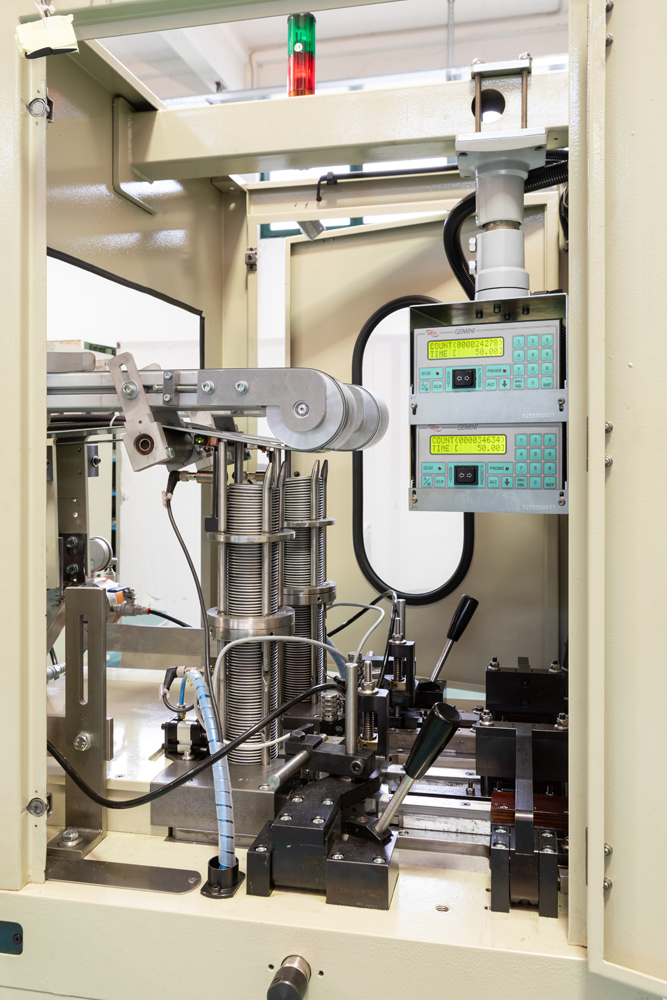

Compound applicator is equipped with electronic nozzle.
Machine and mandrel speeds are independent and controlled by means of drive units.
Separator worms on both sides in order to optimise and speed up end separation.

Command and control of compound application unit by means of an electronic system which has the following advantages:
– easy set-up for compound distribution for various production speeds;
– easy set-up of application unit for different sizes;
– application unit equipped with compound flushing system.

VERTICAL POCKET OVEN

Automatic machine for compound drying on round, oval or rectangular ends and aerosol can domes.
Ends are conveyed inside the oven with special pockets made of heat-resistant plastic.

Automatic temperature control which is adjustable.
Electronic safety device for flame control.
Rapid and automatic size change-over on both sides.

UPON REQUEST

Pneumatic diaphragm pump for compound feeding directly from drum.

Double, triple, quadruple Wrapper in different configurations.

Motorized mixer for 200 liter compound drums.

Special Parts for aluminum ends.

End counter at oven outlet.

Horizontal stacker.

Electric Oven.
