Strip-Feed-Press

TECHNICAL DATA

MODEL	CAPACITY OF PRESS (tonns)	STROKE OF RAM (mm)	DEPTH OF DRAWING (mm/max)	2 DIE CUTTING (mm/max)	1 DIE CUTTING (mm/max)	STRIP FEED (mm/min-max)
PDV 394 PD 394	40 45	46 70	8 20	127	235	40 – 129 40 – 237
PDV 394 PD 394	WIDTH OF STRIP (mm/min e max)	LENGTH OF STRIP (mm/min e max)	RAM STROKES PER STRIP (min e max)	RAM STROKES (per min.)	OUTPUT DOUBLE DIE (per min.)	TOTAL POWER (KW)
PDV 394 PD 394	85 – 240 85 – 240	750 – 1170 750 – 1170	3 – 24 3 – 24	200 – 400 120 – 300	600 – 800 240 – 600	7 7
PDV 394 PD 394	NET WEIGHT OF PRESS (kg)	DIMENSIONS (mm)
PDV 394 PD 394	4900 4900	3400 x 2300 x 2400 3400 x 2300 x 2400

MODEL	CAPACITY OF PRESS (tonns)	STROKE OF RAM (mm)	DEPTH OF DRAWING (mm/max)	2 DIE CUTTING (mm/max)	1 DIE CUTTING (mm/max)	STRIP FEED (mm/min-max)
PDV 394 PD 394	40 45	46 70	8 20	127	235	40 – 129 40 – 237
PDV 394 PD 394	WIDTH OF STRIP (mm/min e max)	LENGTH OF STRIP (mm/min e max)	RAM STROKES PER STRIP (min e max)	RAM STROKES (per min.)	OUTPUT DOUBLE DIE (per min.)	TOTAL POWER (KW)
PDV 394 PD 394	85 – 240 85 – 240	750-1170 750-1170	3 – 24 3 – 24	200 – 400 120 – 300	600 – 800 240 – 600	7 7
PDV 394 PD 394	NET WEIGHT OF PRESS (kg)	DIMENSIONS (mm)
PDV 394 PD 394	4900 4900	3400 x 2300 x 2400 3400 x 2300 x 2400

Machine designed for maximum mechanical stability.
Machine frame is a casting block.
Flywheel supported by the base so as to avoid any overload on the crank shaft.
Ram movement guided by special prismatic gibs. This feature ensures perfect alignment of the tool carriage. Conical guide for simplified gib adjustment.

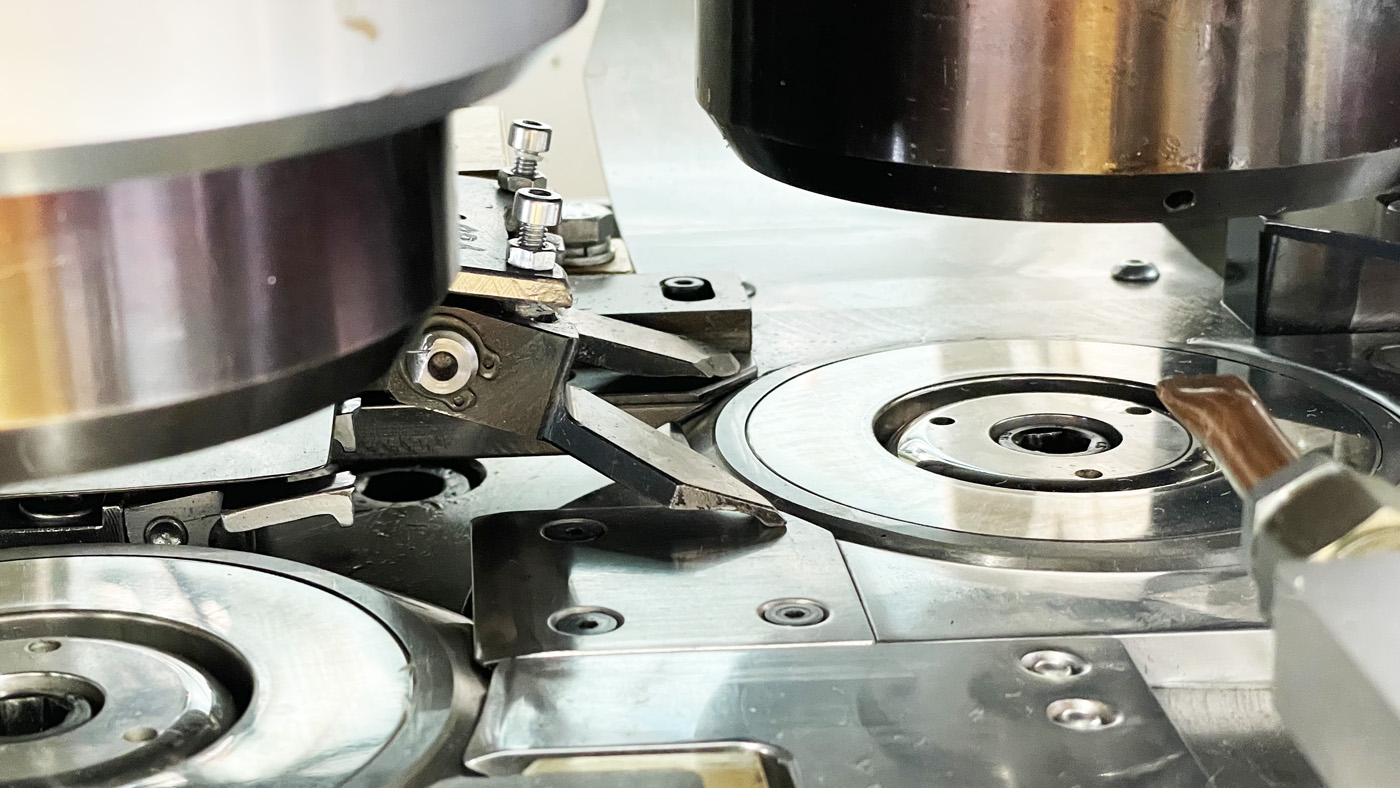

Complete tooling consisting of: tool guided by three Agathon type roller bearing columns, with hardened steel upper cutting parts and carbide dies, special rubber shock absorbers, strip guiding unit and end ejector levers.
Machine speed controlled by means of inverter.
Electronic phase adjustment (suction cup-scrap ejector-feeders) controlled by encoder.

Automatic double strip detector.

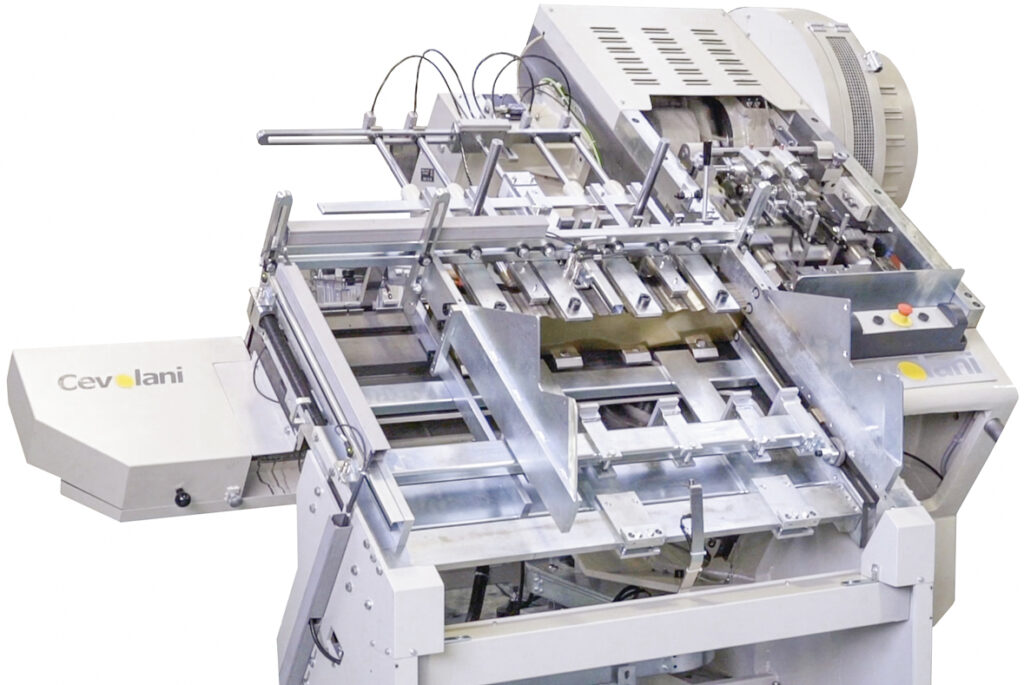

Large capacity strip hopper. Magnetic system for automatic strip feed from scroll shear.
Pneumatically controlled clutch/brake unit.
Separate electric cabinet controlled by PLC.
Digital display showing all machine functions.
New Cevolani machines are built with our traditional standards of durability and solidity. This allows used machinery to keep value in time.
The common Wear and tear spare parts are available in our warehouse.

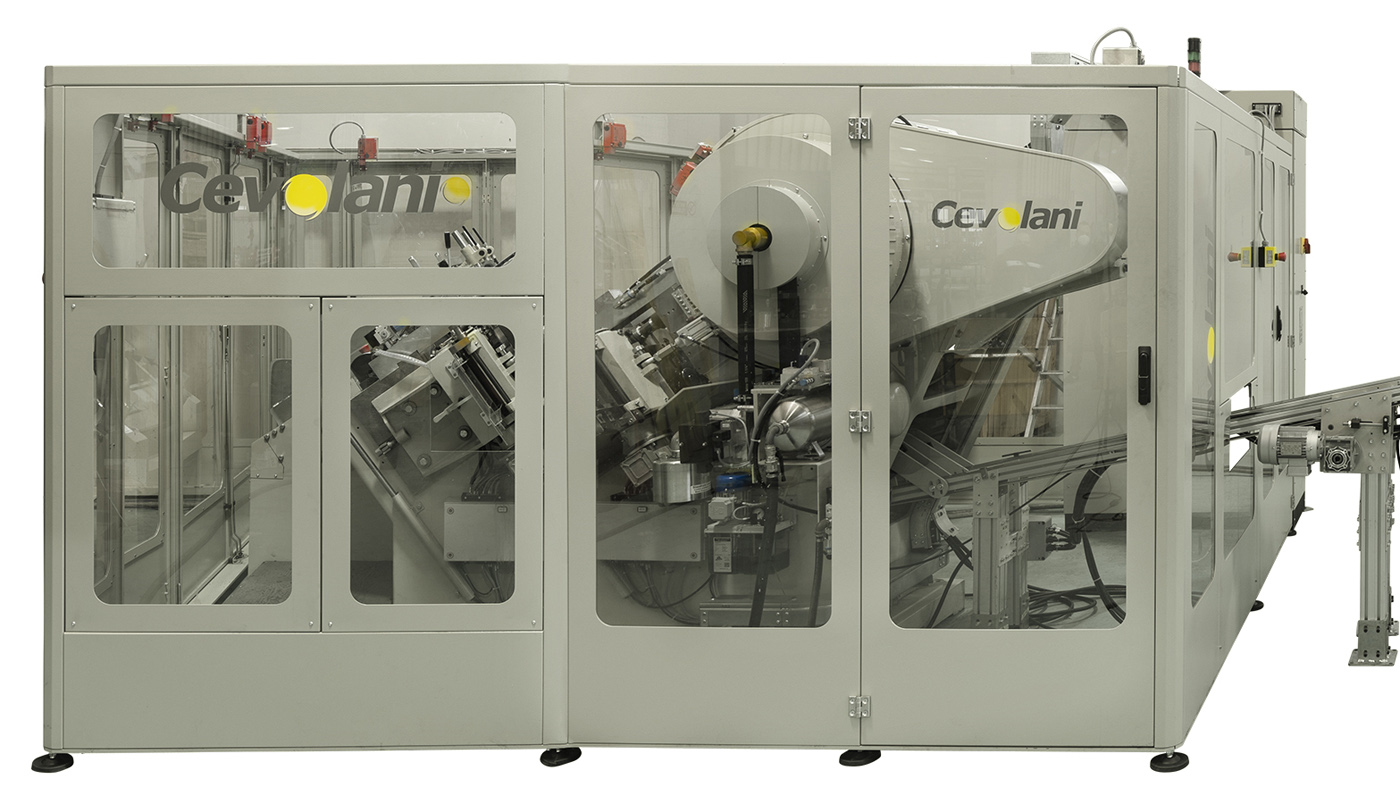

Soundproof booth

Automatic end inside and outside inspection system with single or double camera
