Transfer-press

TECHNICAL DATA

T D
E A
C T
H A
N …
I …
C …
A …
L …

MODEL	CAPACITY OF PRESS (tonns)	TOOL STATIONS	STROKE OF THE SLIDE (mm)	DEPTH OF DRAWING (mm/max)	AIR SUPPLY (bar)
PCA 100	100	9	120	32	8
	WIDTH OF THE STRIP (mm/min e max)	LENGTH OF STRIP (mm/min e max)	RAM STROKES (per min)	OUTPUT DOUBLE DIE (per min)	TOTAL POWER (KW)
	85 – 240	690 – 1170	175	350	22

MODEL	CAPACITY OF PRESS (tonns)	TOOL STATIONS	STROKE OF THE SLIDE (mm)	DEPTH OF DRAWING (mm/max)	AIR SUPPLY (bar)
PCA 100	100	9	120	32	8
	WIDTH OF THE STRIP (mm/min e max)	LENGTH OF STRIP (mm/min e max)	RAM STROKES (per min)	OUTPUT DOUBLE DIE (per min)	TOTAL POWER (KW)
	85 – 240	690 – 1170	175	350	22

Machine designed for maximum mechanical stability.

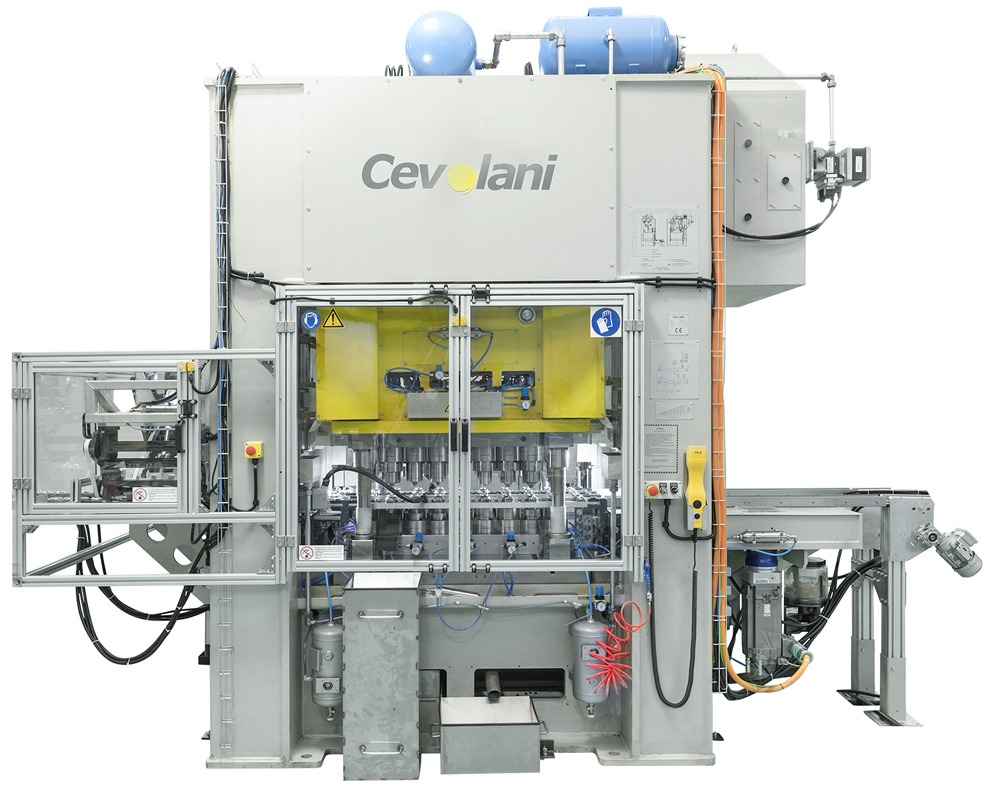

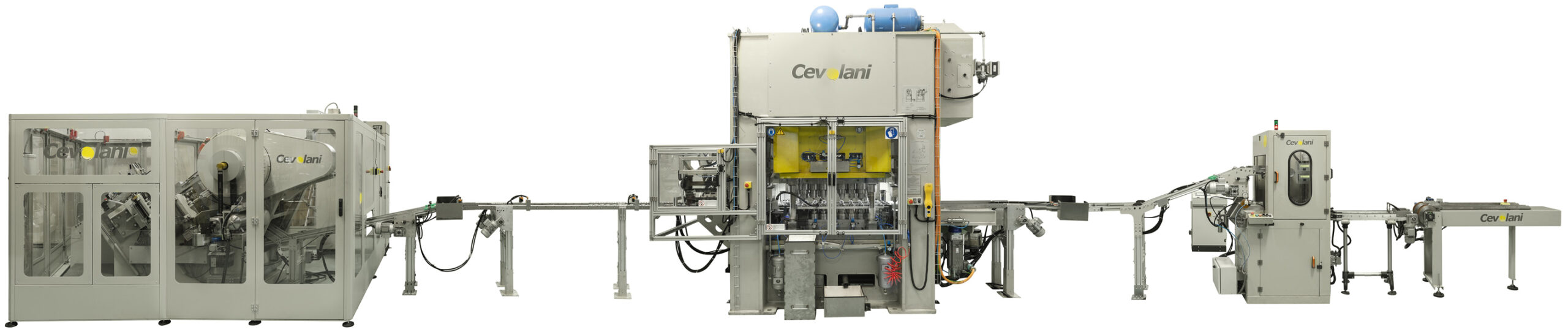

Automatic Transfer Press with double row blank feeding system.
Suitable for steel forming with thickness up to 0,40 mm.

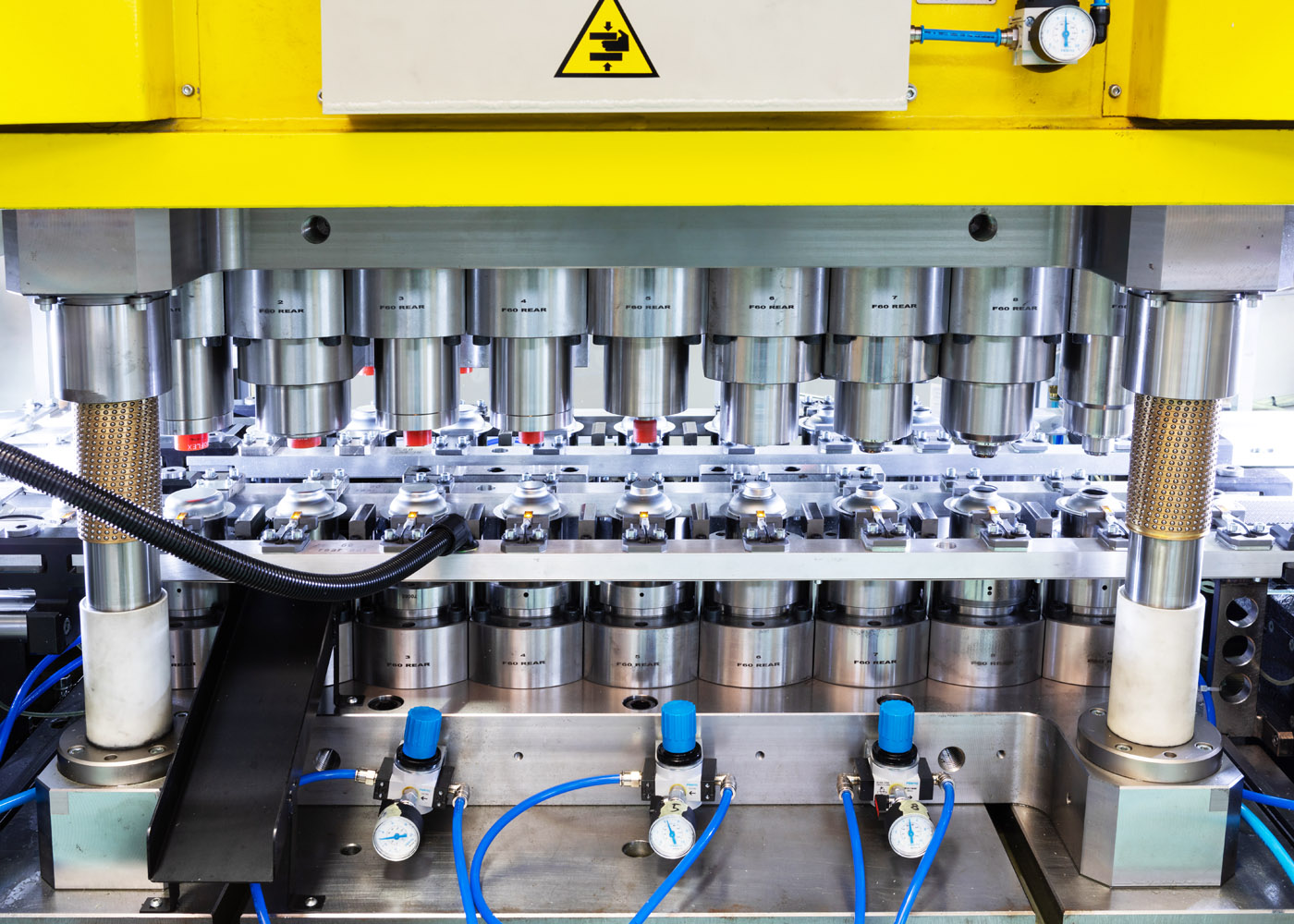

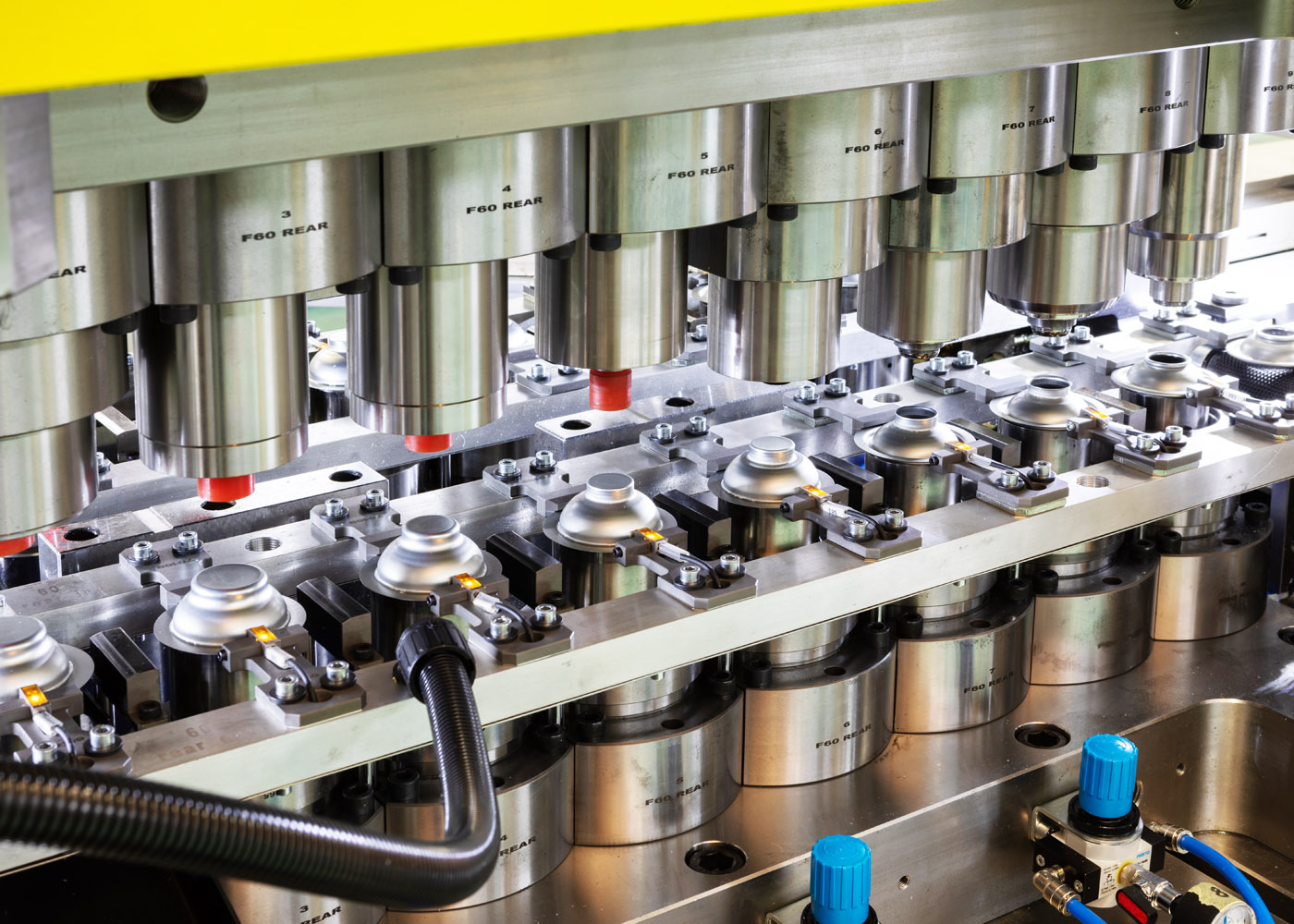

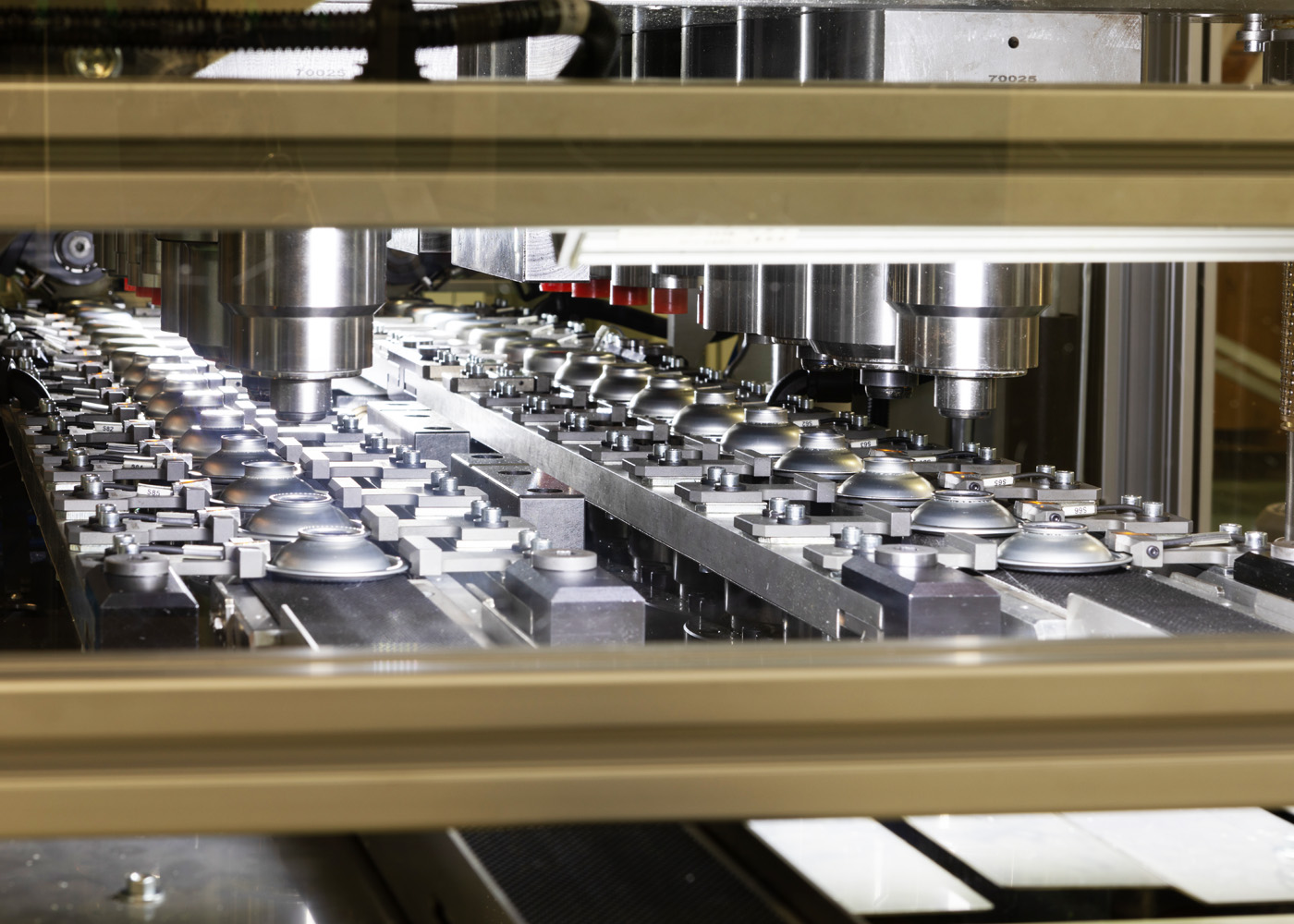

Complete tooling consisting of: Double feeding conveyer, double separating feeding mechanism for blanks, carbide dies, transfer system with grips and double outgoing conveyer.
Machine speed controlled by means of inverter.

Electronic phase adjustment controlled by encoder.
Separate electric cabinet controlled by PLC.
Digital display showing all machine functions.
Machine built with our traditional standards of durability and solidity. This allows used machinery to keep value in time.
Wear and tear spare parts are always available in our warehouse.

UPON REQUEST

Soundproof booth

Automatic end inside and outside inspection system with single or double camera
